Choosing the right GPS Tracking Device

Choosing the right GPS Tracking Device

There are numerous tracking devices with varying specifications & configurations on the market that choosing the right product suitable for your needs makes a daunting task.

Like everything else, some individuals make their decision based on the price of the device whilst others base theirs on the specifications, quality of the components and features.

Acquiring the right device is about the most important decision you will make if you're planning on implementing a GPS vehicle tracking system.
Making the right choice the first time is imperative as changing your mind at a later stage tends to be costly and expensive
Listed below is a list that we have compiled to guide and assist you in making "the" decision.

Most tracking devices offers the following basic features:

  • Location of vehicle
  • Vehicle speed (GPS based)
  • Ability to disable/enable engine remotely
  • Ability to monitor the vehicles start & stop events

In addition to these features, some tracking devices provide extra features and more accurate data, depending on your requirements, some of these advanced features may or may not be required for your needs such as:

  • The actual speed that your vehicle is travelling as displayed on your odometer in the dash board
  • The actual fuel level and fuel tank content of the vehicle
  • The actual fuel activities of the fuel tank such as a gradual or sudden decrease of the fuel or when it's been filled up
  • The coolant (water) level & temperature
  • The engine oil level/pressure of the vehicle
  • The current battery state that's if it is fully charged or approaching the end of its life
  • The RPM & engine temperature
  • Engine load, Axle weight that is if the vehicle is been over loaded or not
  • Temperature monitor for refrigerated trucks/vans
  • Braking G-force, brake pressure (excessive braking), brake & throttle position
  • Air filter/turbo pressure, Oxygen to fuel ratio

And many more detailed engine information

  • Engine malfunction error (DTC) codes
  • Remote vehicle diagnostic info sent together along your GPS data

In summary all the info you see on your dash board plus many more additional data sent to you every 5 seconds or your choice of update interval.

Backup Battery

Backup battery is measured in mA, the higher this number the number the better but at the minimum you should be expecting 850mA. Backup battery becomes very important when there is a power failure such as when the vehicles battery is disconnected or when the tracking device is disconnected from the vehicles power supply.

Memory

Vehicles working in remote areas such heavy equipment ( Caterpilar, excavators, bulldozers ) where GSM / GPRS signals are lost ( out of coverage area ), the events are stored in memory, when signal is restored the events are then transmitted. Memory is measured in MB or MiB, the higher the number the better, as a guide 1mb = 5 - 6 days. GSM signal failure can affect any vehicle that moves into a GSM black spot or limited coverage area.

GSM GPS Anti Jamming

All GSM enabled devices are susceptible to be jammed, tracking devices included, some are able to detect and act on these signals whereas others are not so clever. When these rogue signals are detected, these devices react differently, some will quickly notify you or perform a pre-configured function. Some tracking devices switch between the different frequencies available, some will, after exhausting all the existing frequencies, shuts down (immobilise) the vehicles engine just as you would, when the vehicle is moved or taken unlawfully.

can you spot the similarities between these gadgets?
supraTrack services supraTrack services supraTrack services supraTrack services
they are all GSM Jammers designed to block out GSM signals

With the less sophisticated models, thier GSM signals are just jammed making the device think it's out of coverage area or "No Service" thereby rendering the device ineffective to send and recieve data and commands. If your vehicle happens to be using one of these models then it will become impossible to track or send any command to it.

With the exception of the Law Enforcement Agencies, the use of these jamming devices can be illegal and against the law, so is taking someone's vehicle unlawfully or without permission. Remember these devices can be as small as the size of your mobile/cell phone but cost a fraction of it and as the images above shows, it's quite difficult to spot.
The use of these devices is in widespread use than you may think, many office buildings, boardrooms, hospital & churches employ this technology to reduce the distraction caused by the ringing of mobile/cell phones, often these phones will display "no service"

The more sophiscated we get to protect our vehicles and assets, the more sophiscated the bad guys also gets. Not too long ago vehicles were not fitted with central locking, alarms and immoblisers but these days every vehicle is fitted with one just to be ahead of those that want to deprive us of our valuable vehicles and assets

If you're considering investing in a GPS Vehicle Tracking device for the purpose of vehicle security, then an Anti-Jamming feature should not be overlooked

Products

Organization that offer tracking devices claim to offer an all-round functionality that is a one size fits all approach. This claim to some extent can be legitimate but what is actually happening is in fact, these are basic general purpose hardware (devices) that relies on software manipulation to meet or achieve most of the published or advertised features. supratrack Price Match promise in ghanaAn example is the claim made by organization that offer tracking devices, to report on the vehicle speed but what they are actually reporting is the time taken to travel between 2 points or coordinates, these figures are computed and the result is an estimated GPS speed, the same can be said about the odometer (mileage) readings and other decision making data

Other devices have specific hardware that can read and report the actual data as recorded by the vehicles own on-board computer

At SupraTrack we deliver on our claims, Our devices feature specific hardware components customised for specific applications
An example of this is an effective Fleet Management System (FMS) cannot be accomplished without fuel monitoring, so the devices in our Fleet Management products range are equipped with specific hardware components capable of communicating and reading reliable data such as fuel levels, rate of fuel consumption and indeed the FMS data as outlined in the FMS protocol and framework.
Similarlry our Track & Recover products which are aimed at high value vehicles that are more susceptible to be stolen are GSM/GPS Anti-Jamming equipped making them fool-proof and resilient.

To help simplify the process of choosing the right product for your application, we have categorised our devices into the various services offerings.
We are always on hand to offer further assistance and guidance

  • Track & Recover Devices
  • Fleet Management Devices
  • Remote Engine Management Devices

Our entry-level products, Track & Recover devices among other features are all equipped with GSM Anti-Jamming features to ensure that when your vehicle is taken unlawfully or stolen by even the most seasoned sophisticated car thief equipped with a hi-tech GSM Jammer, these devices will stand & hold and execute whatever commands that you have requested us to pre-program. Example when the device detects a scrambling or jamming of its signals it can switch on the hazard lights and immobilise the vehicle to ease recovery.

  • STGS-818
  • STUx

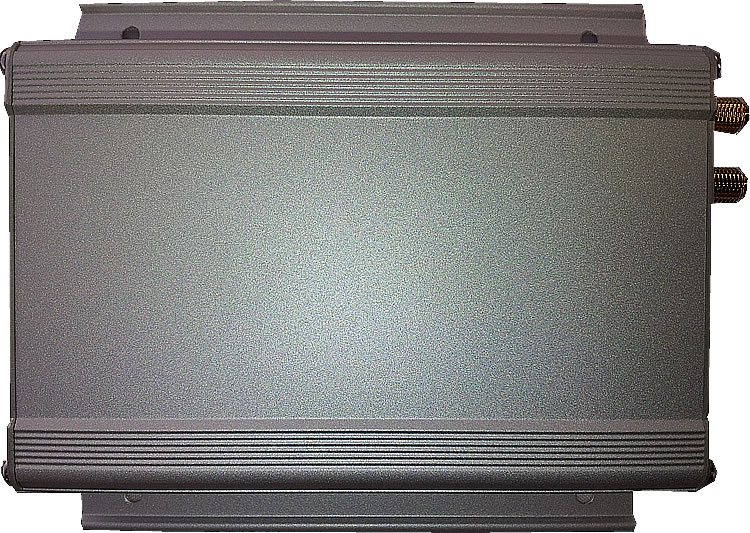

real time vehicle GPS tracking ghana STGS-818

The STGS-818 is our entry level Advanced Vehicle Locator
offering basic GPS vehicle tracking with fuel monitor
equipped with the state-of- the-art Siemens BG2-W
GSM module & GSM Anti - Jamming detection

real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana
  • Overview
  • Features
  • Technical Specifications
  • Brochure

Overview

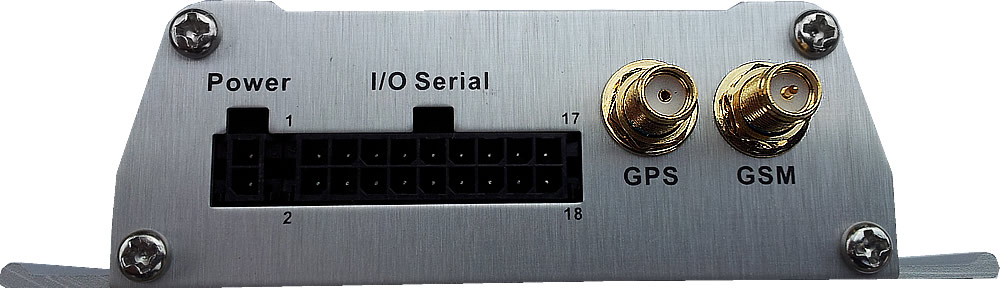

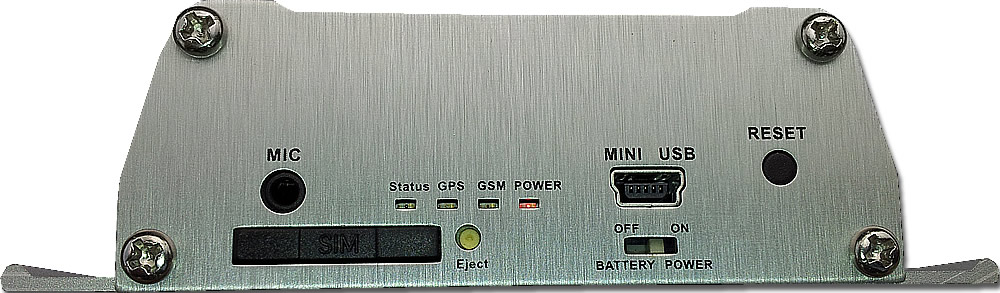

The STGS-818 is specifically designed for permanent installation in vehicles and assets of high value for the sole purpose of vehicle tracking applications. Equipped with Siemens BG2-W GSM module and a SiRF Star III GPS Receiver, its rugged metallic aluminum casing makes it the best match for in-car environments. An ignition input, 5 digital Inputs, 2 analogue inputs & 2 analogue outputs are provided and opened for sensors and relays, this makes it versatile for a varied configuration & applications.

Not many tracking devices are fitted with the top quality Siemens Quad band GSM module with an external aerial and external GPS receiver the STGS-818 has. An 850mA/3.7V Li-MH internal backup battery and external power input/output of 8-35V DC ensures that if the vehicles battery is disconnected the STGS-818 will still be functioning as expected & it has been certified to function in a wide ranging operating temperature.
Ten configurable I/O's provides an ACC/Ignition On/Off detection, two Analogue Inputs are provided to monitor Fuel, Temperature, Humidity sensors etc. two Analogue Outputs for turning on head lights/lamps/Speakers etc. The five digital inputs for monitoring whether certain doors are opened/closed, wipers On/Off, Air Conditioners, music etc and of course Bosch SPDT Relays to immobolise the vehicle, sound the horn etc.

The STGS-818 is equipped with 16Mb flash memory to store over 90 days of tracking data or events when GSM/GPRS signal is lost or out of coverage area to be later transmitted when network service is restored.
Remote Firmware upgrade (FOTA) means that, the STGS-818 can be upgraded with new software or features as soon as it's released by the manufacturer irrespective of where the vehicle may be so far as there is network coverage.

The STGS-818 has GSM/GPS jamming detection that can be enabled to trigger output devices like head/hazard lights, immobilizer or buzzer when jamming is detected. The resultant event data will be saved to the device flash memory during the period of jamming and either one or both of the devices' two analogue outputs can be defined to action for jamming detection.

Features

    Security

    • Panic alarm
    • Vibration Detection
    • Anti GSM/GPS Jamming
      • Detects Signal Jamming, generates report & immobilize vehicle

    • Park & Move Detection
      • The vehicle can be set to Park eg. Out of hours, so when the vehicle is moved a report/notification will be generated and sent

    • Engine immobiliser
      • Equipped with a Bosch SPDT Relay the vehicle can be immobilised by an SMS command from a specified mobile/cell phone or from our command centre if need be

    Driving Behaviour

    • Drive Angle Detection
      • Detects & generates report on sharp turns (sharp left & sharp right cornering) possible accident detection

    • Over speed Detection
      • Detects & generates report on over speeding

    Communication

    • Voice
      • 2 way voice communication or just listen in (eavesdropping)
    • Command Over The Air (COTA)
      • Send commands to Tracking Device over the Air e.g. SMS or through our Web Application
    • Firmware Over The Air
      • Firmware can be upgraded Over the Air, that is we can upgrade the device to the latest firmware or software from our command centre even if the device is hundreds of miles away

    • The device can communicates through HTTP web/TCP/UDP/SMS network protocols

    Advanced Features

    • Fuel Monitoring
    • Temperature Monitoring
    • Support Garmin FMI (Fleet Management Interface)
    • Support RFID Reader & Barcode Reader

Stores event data up to 90 days if there is no GPRS/GSM signal.

Technical Specification

    GSM Transceivers
      GSM Module
      • Siemens BG2-W
      GSM Frequency
      • Quad-band: GSM 850 / 900 / 1800 / 1900 MHz
      Compliance
      • Compliant to GSM Phase 2/2+
      GPRS
      • GPRS multi-slot class 10/8
      • DL: max. 85.6 kbps
      • UL: max. 42.8 kbps
      • GPRS mobile station class B
      RF Power output
      • Class 4(2W) at EGSM900 and GSM850
      • Class 1(1W) at DCS1800 and PCS 1900
    GPS Module
      Receiver
      • CSR SiRF Star III™ GPS Receiver
      Datum
      • WGS-84
      Sensitivity
      • -159dB
      Reacquisition
      • < 0.1s
      Update Rate
      • 1 Hz
      Accuracy
      • Average accuracy within 15 meters
    General
      Antenna
      • External GSM antenna (SMA Connector)
      • External GPS antenna (RSMA Connector)
      I/O
      • 1 x ACC Detection
      • 2 x Output (Max. operating current 300mA, @VIN)
      • 2 x Analogue Input (0 ~ 40 V DC, Function reserved)
      • 5 x Digital Input (2 Positive 3 ~ 40V, 3 Negative 0 ~ 0.6V)
      Interface
      • RS-232 (Support Garmin FMI, Bar Code Reader, RFID Reader)
    Dimensions (L x W x H): 105 x 100 x 30mm
    Power Source
      • 8 - 35V DC
    Backup Battery
      • 850mA / 3.7V Li-MH
    Operating Temperature: -250°C ~ +85°C
    (NOTE: The specification is subject to change without prior notice.)

STGS-818 Brochure

Click here to download the brochure

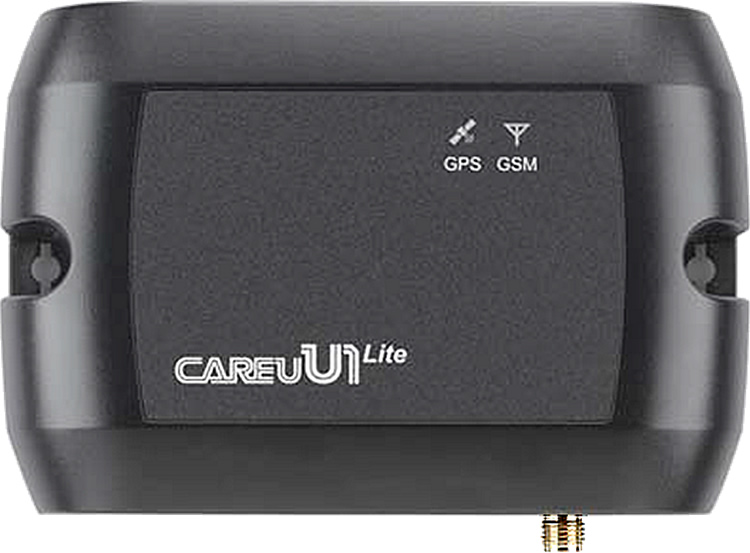

real time vehicle GPS tracking ghana CareU STU1Lite

The STU1Lite Advanced Vehicle Locator offers standard
real time vehicle GPS tracking ghana GPS vehicle tracking with fuel monitor, GSM
Anti - Jamming detection, Roaming profiles & compatible with our Remote Engine Management add-on accessories & external Temperature sensor

real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana
  • Overview
  • Features
  • Technical Specifications
  • Brochure

Overview

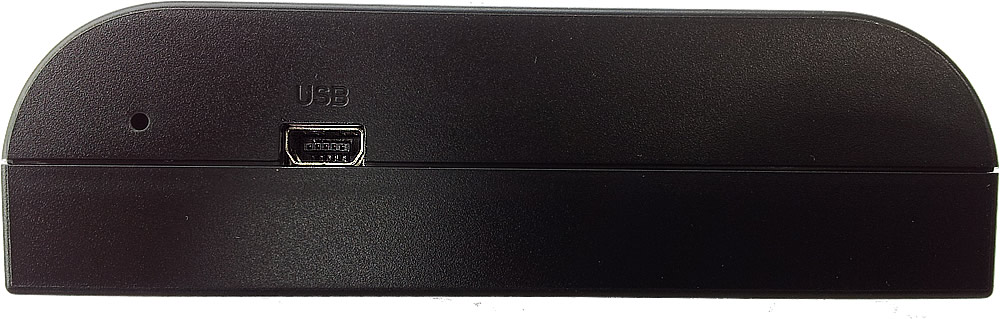

The STUx, the baby in our STU series is a GPS Tracking Device that delivers positioning messages and in collaboration with our web application helps users to proceed with the analysis and the applications of vehicle transport, management, anti-theft, security, tracking etc.

Equipped with the latest chipsets and Real-Time Operating System, this entry level Vehicle Tracking Device transmits wireless signals such as location, peripheral and other vehicle control data to our control centre as soon as the data is acquired. The on-board GPS receiver provides users with location data such as vehicle speed, direction, mileage and altitude. It uses an on-board GSM/GPRS module to accomplish this wireless transmission

The on-board micro-controller can probe location and command data at regular intervals, derive actions from location, peripheral, control data and execute such actions. Example when GSM jamming is detected it can execute predefined actions such as immobilise the engine or switch from transmitting data every 15 seconds to 5 minutes or even change from sending data through GPRS to SMS when it detects the vehicle has left the country (Roaming profile)

Peripheral data indicates the status of various peripherals connected to and/or controlled by the device. The peripherals include, but not limited to, door locks/unlock, starter interrupt, ignition, battery level, engine on/off and panic button

The firmware in the device applies intelligent filtering to overcome coverage limitations for both GPS and GSM/GPRS networks however in the extreme cases where network coverage is poor, it will keep recording and store up-to 20,000 GPS data logs using its on-board 2MB Flash memory

The embedded Motion sensor controls the status of the device, whether in sleep, idle or fully-powered mode, that is, controls the amount of current consumed by the device. The 3-axis G-Force sensors detects motion, impacts, collision or accidents

Backup battery and tamper sensing GPS Antennas primarily indicate the loss of Main Power and the interruption of GPS antenna connectivity

The STUx Tracking Device supports both Command over-the-air (COTA) and Firmware over-the-air (FOTA) upgrade to deliver additional functionality without physically touching the device once installed.

In consideration of technicality and marketability, the STUx has so many excellences to be competitive enough to stand out in the market. With regard to the technicality, it saves and records more data even under inactive communication status and it also provides better power management, coexistence of GPRS and SMS modes than many in its class.

Features

    • Roaming Profiles
    • Geofence Control
      • 50 geofence reports (Circular, Polygonal, Triangular & Rectangular Zones)
    • Intelligent power management
    • Power low/lost alarm
    • Mileage Report
    • Daily Report
    • 10 user-defined reports

    Security

    • Panic alarm
    • Motion Detection
    • Tow Detection
    • Anti GSM Jamming
      • Detects Signal Jamming, generates report & immobilise vehicle
    • Engine immobiliser
      • Equipped with a Bosch SPDT Relay the vehicle can be immobilised by an SMS command from a specified mobile/cell phone or from our command centre if need be

    Driving Behaviour

    • Drive Angle Detection
      • Detects & generates report on sharp turns (sharp left & sharp right cornering) possible accident detection
    • Impact & Collision Detection
    • Idle & Excess Idle Detection
    • Speed Acceleration Detection
    • Speed Deceleration Detection
    • High Speed Detection
      • Alerts & generates report on over speeding

    Communication

    • Command Over The Air (COTA)
      • Send commands to Tracking Device over the Air e.g. SMS or through our Web Application
    • Firmware Over The Air
      • Firmware can be upgraded Over the Air, that is we can upgrade the device to the latest firmware or software from our command centre even if the device is hundreds of miles away
    • The device can communicates through TCP/UDP/SMS network protocols

Stores up to 20,000 GPS data logs if there is no GPRS/GSM signal.

Technical Specification

    GSM Transceivers
      GSM Module
      • uBlox
      GSM Frequency
      • Quad-band: GSM 850 / 900 / 1800 / 1900 MHz
      Compliance
      • Compliant to GSM Phase 2/2+
      GPRS
      • GPRS multi-slot class 10/8
      • DL: max. 85.6 kbps
      • UL: max. 42.8 kbps
      • GPRS mobile station class B
      RF Power output
      • Class 4(2W) at EGSM900 and GSM850
      • Class 1(1W) at DCS1800 and PCS 1900
      Antenna
      • Internal GSM antenna
    GPS Module
      Receiver
      • CSR SiRF Star III™ GPS Receiver
      Datum
      • WGS-84
      Sensitivity
      • -162dBm
      Reacquisition
      • < 0.1s
      Update Rate
      • 1 Hz
      Channels
      • 66
      Accuracy
      • Average accuracy within 2.5 meters CEP
      Antenna
      • External GPS Active Antenna, 3.3V
      Connector
      • SMA Female Connector
    General
      I/O
      • 1 x ACC Detection
      • 2 x Output (Negative Triggers, Max. Sink Operating Current 300mA, @VIN)
      • 1 x Analogue Input (DC VIN = +30V ~ 0V DC, Function reserved 12-bit Resolution)
      • 3 x Digital Input (2 Positive 3 ~ 40V, 1 Negative 0 ~ 0.6V)
      Dimensions (L x W x H): 102 x 68 x 27.6mm
      Weight : 95gm
      Power Source
        • 8 - 30 DC
      Power Consumption
        • 49mA @12V DC (Operating Power Mode)
        • 8mA@12V DC (Standby Power Mode)
        • 3mA@12V DC (Deep Sleep Power Mode)
      Backup Battery
        • 1000mAh Li-Ion backup battery
      Operating Temperature: -20°C ~ +70°C
      (NOTE: The specification is subject to change without prior notice.)

STUx Brochure

Click here to download the brochure

Fleet Management

Fuel is one of the major costs facing Fleet operators on daily basis so we believe a device been passed on as Fleet Management capable will not be complete if it doesn't offer some kind of Fuel monitoring.

All our Fleet Management devices are equipped with Roaming profiles, vehicle main Battery voltage level, Fuel Level monitoring for both internal & external fuel sensors

It should be noted that our devices can only read but cannot write to the ECU of the Vehicle, simply put, if there is a fault indicator or code such as the "check engine", our device will not be able to reset it. All it does is reading the data and presenting it to you for the appropriate measures to be taken to fix the problem.

* Please note that some of these devices may also be listed under the Remote Engine Management Devices

  • STA1CAN
  • STU1
  • STU1 Lite

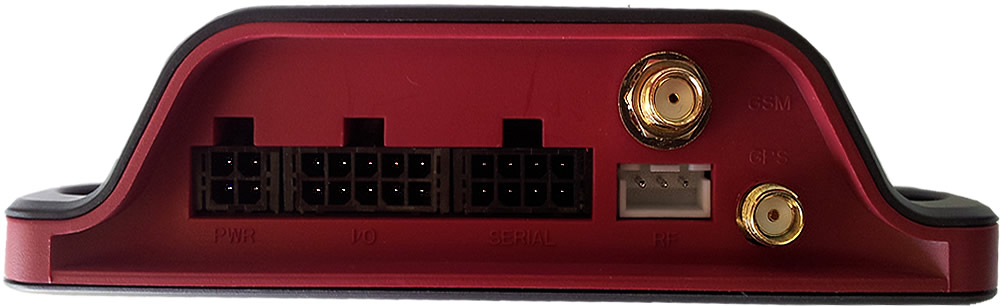

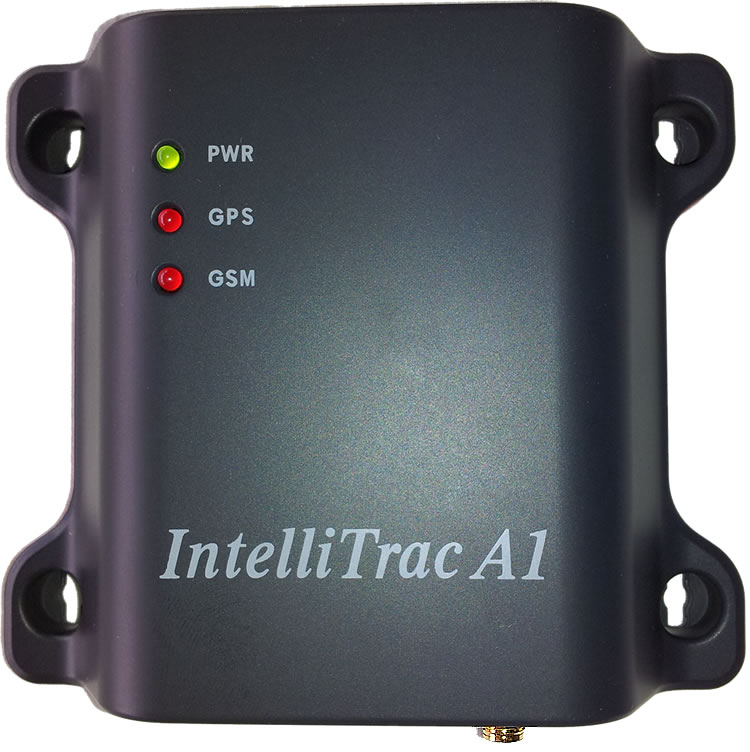

real time vehicle GPS tracking ghana IntelliTrac STA1CAN

This beauty is an all-in-one Advanced Vehicle Locator
with built-in Remote Engine Management suitable for Heavy Duty Trucks & Buses manufatured after 2006 or Euro III - VI Heavy Duty Engines. It's equipped with fuel monitor & Roaming profiles

real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana
  • Overview
  • Features
  • Technical Specifications
  • Brochure

Overview

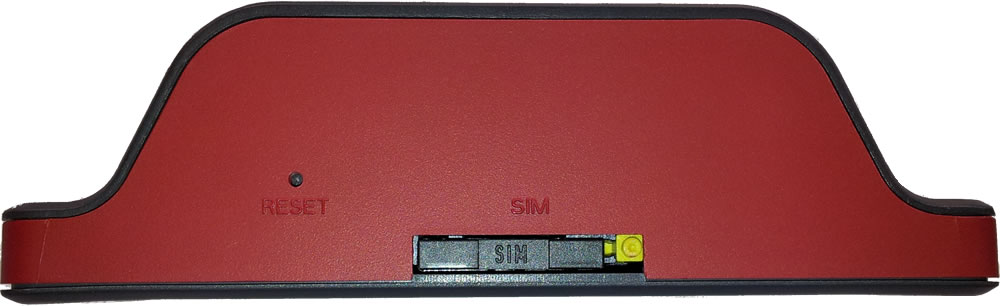

Probably the most beautiful Advanced Vehicle Locator (AVL) ever produced, the STA1CAN matches its looks with functionality, build quality and reliability.

An all in one device, it has a built-in CAN chipset making it capable of reading and processing J1939 data. Meaning that the STA1CAN is designed to compliment the Fleet Management and Remote Engine Management service.

The onboard GPS receiver provides users with location data including speed, direction, mileage and altitude whilst the onboard J1939 chipset provides vehicle control data. The accumulated data is stored in memory and then forwarded on to our control centre using its onboard GSM/GPRS module wireless transmission.

A microcontroller can probe location and command data at regular intervals, derive actions from location, peripheral and control data, and execute such actions

Peripheral data indicates the status of various peripherals its connected to and controlled by the unit. Peripherals include, but not limited to, door locks/un-locks, starter interrupt, ignition, battery, engine and panic button.

Firmware on the device applies intelligent filtering to overcome coverage limitations for both GPS and GSM/GPRS networks

Motion sensor can control the status of the unit, no matter in sleep, idle or full power mode and thereby control the amount of current consumed by the unit.

Backup battery and tamper sensing GPS Antennas primarily indicates loss of Main Power and interruption of GPS antenna connectivity The device supports Over-the-air firmware upgrade to deliver additional functionality without physically touching the device once installed.

Roaming profiles and 50 reports available to be customized such as

  • Vehicle & device back-up battery status
  • Engine Over Revving
  • Engine Coolant Temperature alerts (Over heating)
  • Voice monitoring & two way voice communication
  • Independent Fuel level monitoring
  • Ignition ON/OFF & Engine ON/OFF alerts
  • High Speed alerts
  • Tow alerts
  • Power status
  • GPS signal monitor
  • Motion detection
  • Impact or collision detection
  • Vehicle Idle alert
  • Speed acceleration & deceleration
  • Driver Fatigue
  • etc..

your imagination will be the limitation for choice

In effect the STA1CAN is an Advanced GPS tracking device and a personalized fully capable diagnostics machine for Newer Heavy Duty Trucks and Buses all in one that will be permanently installed in the vehicle.

Features

  • Improved Safety & Ensured Security
  • Best efficiency for Fleet Management & Dispatch solution
  • Asset and resource management
  • Economic operation and productivity improvement
  • Great journey recordkeeping for future analysis or accident reports
  • Accurate location of the vehicle, estimated time of its arrival & current speed

The incorporated Remote Engine Management features provides these additional

  • Reduce Vehicle maintenance cost
  • Schedule maintenance
  • Vehicle performance information
  • Engine coolant temperature
  • Engine Oil pressure
  • OBDII/EOBD Data collection
  • Vehicle monitor data statistics
  • Idle time (Engine ON but speed is zero)
  • Odometer reading
  • Fuel Economy
  • Oxygen sensor status
  • Catalyst status
  • Vehicle out of tune
  • Speed, Calculation load, Throttle position
  • Remote Diagnostics or Trouble code reporting

Remote Engine Management Features

The A1CAN has a built in J1939 CANbus chipset making it capable of reading and interpreting engine data from any vehicle that is equipped with the J1939 protocol. This means it will read engine data from all Heavy Duty Trucks and Busses manufactured from 2006 to present.

Listed below are the data currently read from the vehicle's ECU or On-board computer

Fuel Level Engine Fuel Rate (EFR) Fuel Temperature in Engine Engine Coolant Temperature (ECT)
Engine Oil Temperature (EOT) Engine Turbocharger Boost Pressure (ETBP) Axle Weight Engine speed (RPM)
Mass Air Flow rate (MAF) Oxygen Sensor Output voltage Vehicle Wheel Speed (VSS) Accelerator Pedal Position
Time Since Engine Start High Resolution Total Vehicle Distance Active Diagnostic Trouble Codes Tachograph vehicle speed
Barometric Pressure Ambient Air Temperature

In addition to the above data, the A1CAN uses complex algorithms to produce the following alerts & reports that can be sent as both SMS and GPRS alerts

  • Low vehicle Battery Voltage Alert
  • Ignition Alert [Detect Input/ACC Condition]
  • Engine ON/OFF Alert [Detect Engine ON/OFF Condition]
  • IDLE Alert based on the following parameters
    • OBD Speed
    • RPM
    • Accelerator Pedal position
  • Diagnostics Trouble Code (DTC Active) Alert
  • Over-RPM Alert
  • Engine Temperature Alert
  • Low Fuel Alert
  • Acceleration/ Deceleration Alert
  • Over-Speed Alert

In addition to the above, customised alerts are available at no extra cost

Technical Specification

    GSM Transceivers
      GSM Module
      • Simcom
      GSM Frequency
      • Quad-band: GSM 850 / 900 / 1800 / 1900 MHz
      Transmit Power
      • 1W/1800MHz, 1900Mhz
      • 2W/850MHz, 900MHz
      SIM Interface
      • Support SIM card 1.8V, 3V
      GPRS
      • GPRS Mode MultiSlot Class 10
      • Coding Scheme CS1, CS2, CS3 & CS4
      • GPRS Mobile Station Class B
      Antenna
      • External GSM Antenna
      Connector
      • SMA Connector
    GPS Module
      Receiver
      • CSR SiRF Star III™ GPS Receiver
      Datum
      • WGS-84
      Sensitivity
      • -159dB
      Receiver
      • MultiSlot Class 10, Mobile Station Class B
      Protocol
      • NMEA 0183 Ver 3.0
      Antenna
      • External GPS Active Antenna, 3.3V
      Connector
      • SMA Female Connector
    Protocol support
      Support for all legislated OBD II protocols
      • SAE J1939 [(Newer Heavy Duty Trucks & Busses) manufactured from 2006 - present]
    General
      On Board components
      • 32-bit MicroController
      • 8MB Flash
      • 3-Axis G-Force Acceleration Motion Sensor
      • J1939 CANbus interpreter
      I/O
      • 1 x ACC Detection
      • 3 x Outputs (Negative Triggers Max. Sink Current 300mA)
      • 1 x Analogue Input (VI DC 0V ~ 30V, 12-Bit Resolution)
      • 5 x Digital Inputs (3 Positive Triggers VIHmin 7.0V, VILmax 6.0V & 2 Negative Triggers VIHmax 30V, VILmax 0.7)
      Interface
      • 3 Connectors, 4 pin, 8 pin & 10 pin
      • 1 x RS-232 Serial data port (Default 57600bps, Configurable)
    Dimensions (L x W x H): 110mm x 95mm x 30mm
    Weight : 110gm
    Power Source
      • 8 V - 30 V
    Power Consumption
      • 70mA@12V (Full Power Mode)
      • 15mA@12V (Low Power Mode)
      • 6mA@12V (Very Low Power Mode)
    Operating Temperature: -30°C ~ +80°C

STA1CAN Brochure

Click here to download the brochure


real time vehicle GPS tracking ghana CareU STU1

Arguably the most Advanced Vehicle Locatorreal time vehicle GPS tracking ghana in its class & can be connected to our Remote Engine Management add-on accessory, external fuel level
& Temperature sensors and RFID readers all at the same time in addition to features of the STU1 Lite

real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana
  • Overview
  • Features
  • Technical Specifications
  • Brochure

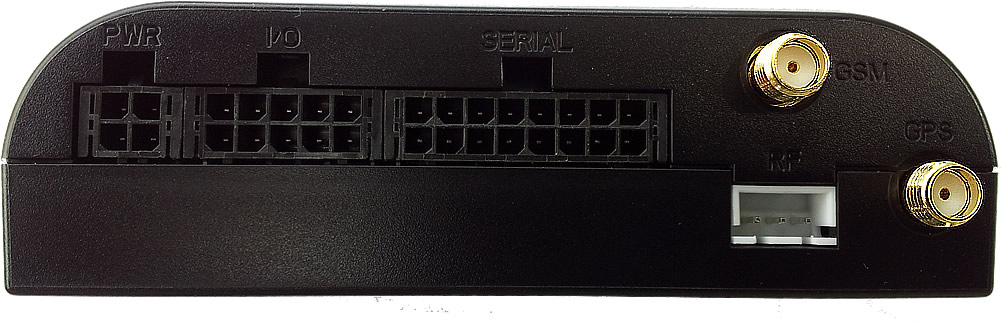

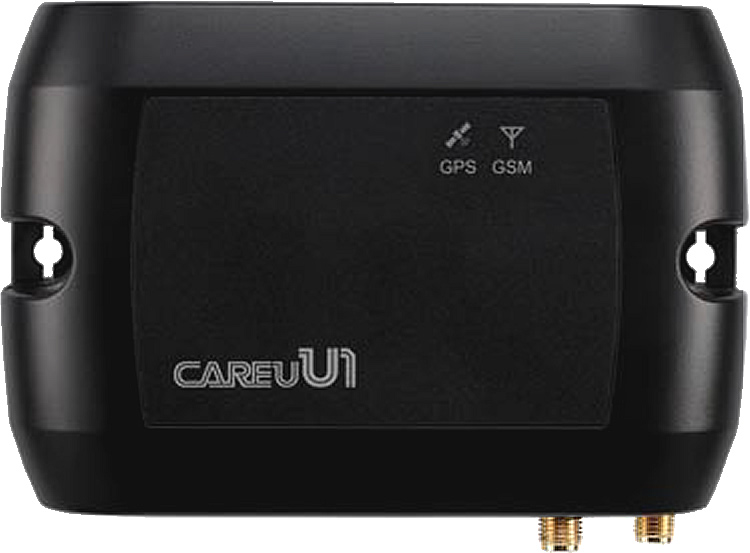

Overview

The STU1 Advanced Vehicle Locator is a device that integrates multiple applications of GPS (Global Position System), GSM (Global System for Mobile Communication) and GIS (Geographic Information Systems) with each other.

Designed with the latest GPS technology, the STU1 used in combination with our STCAN Bridge delivers positioning and real-time Engine Management data by GSM wireless transmission to our control centre, which is then presented to our users for analysis and the applications of vehicle transport management, anti-theft, security and tracking.

On it's own, the tracker transmits wireless signals such as location, connected peripherals and vehicle control data to our servers. The on-board GPS receiver provides users with location data such as speed, direction, mileage and altitude. When used with our STCAN Bridge add-on accessory, it transmits all the above and Engine Diagnostics data such as RPM, MAF, Engine Temperature, Throttle position, Diagnostics Fault Codes etc. It uses its on-board GSM/GPRS module to accomplish wireless transmission

The on-board micro-controller can probe location and command data at regular intervals (Roaming) derive actions from location, peripheral and control data and executing such actions. Example when GSM jamming is detected the STU1 can execute predefined actions such as immobilise the engine, turn on the hazard warning lights etc. or send alerts/audible warning when engine temperature exceeds a predefined threshold

Peripheral data indicates the status of various peripherals connected to and/or controlled by the device. The peripherals include, but not limited to, door locks/unlock, starter interrupt, ignition, battery level, fuel level, engine and panic button

The firmware in the device applies intelligent filtering to overcome coverage limitations for both GPS and GSM/GPRS networks however in the extreme cases where network coverage is poor or inadequate, it will keep recording and store up to 150,000 GPS data logs using its 8MB on-board memory

Motion sensors control the status of the device, whether in sleep, idle or fully-powered mode, and thereby controls the amount of current consumed by the device

Backup battery and tamper sensing GPS Antennas primarily indicate the loss of Main Power and the interruption of GPS antenna connectivity

The device supports both Command over-the-air (COTA) and Firmware over-the-air (FOTA) upgrade to deliver additional functionality without physically touching the device once installed.

Features

    • Roaming Profiles
    • Geofence Control
      • 50 geofence reports (Circular, Polygonal, Triangular & Rectangular Zones)
    • Intelligent power management
    • Power low/lost alarm
    • Mileage Report
    • Daily Report
    • 128 user-defined reports
    • Assisted GPS (AGPS)
    • CANbus Interface

    Security

    • Panic alarm
    • Motion Detection
    • Tow Detection
    • Anti GSM Jamming
      • Detects Signal Jamming, generates report & immobilise vehicle
    • Engine immobiliser
      • Equipped with a Bosch SPDT Relay the vehicle can be immobilised by an SMS command from a specified mobile/cell phone or from our command centre if need be

    Driving Behaviour

    • Drive Angle Detection
      • Detects & generates report on sharp turns (sharp left & sharp right cornering) possible accident detection
    • Impact & Collision Detection
    • Driver Fatigue
    • Idle & Excess Idle Detection
    • Speed Acceleration Detection
    • Speed Deceleration Detection
    • High Speed Detection
      • Alerts & generates report on over speeding

    Communication

    • Voice
      • Interactive Voice Response (IVR)
      • 2 way voice communication or just listen in (eavesdropping)
    • Command Over The Air (COTA)
      • Send commands to Tracking Device over the Air e.g. SMS or through our Web Application
    • Firmware Over The Air
      • Firmware can be upgraded Over the Air, that is we can upgrade the device to the latest firmware or software from our command centre even if the device is hundreds of miles away

    • The device can communicates through TCP/UDP/SMS network protocols

    Advanced Features

    • Fuel Level Monitor
    • * Support for Temperature Sensors (Refrigerated Trucks)
    • * Support for Garmin FMI (Fleet Management Interface)
    • * Support for RFID Reader & Barcode Reader

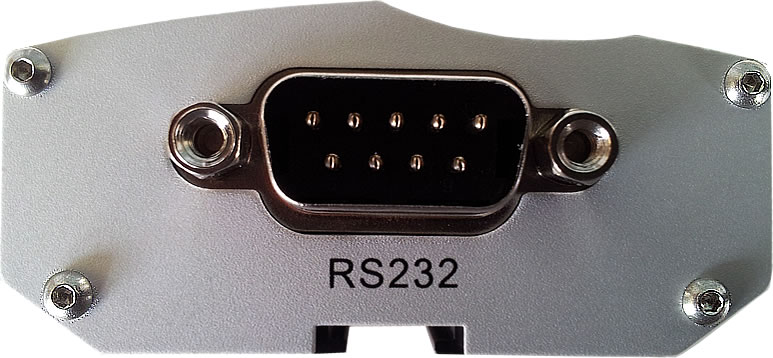

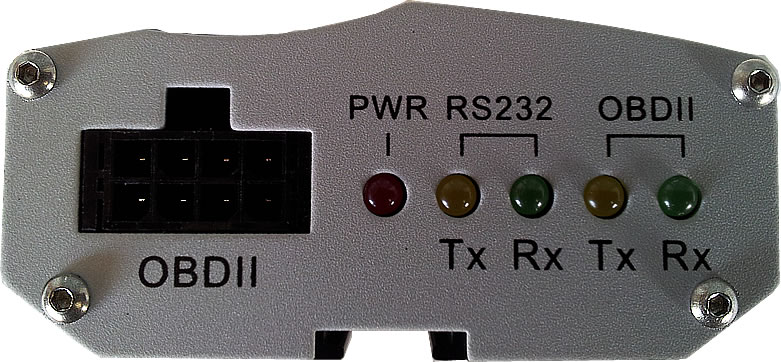

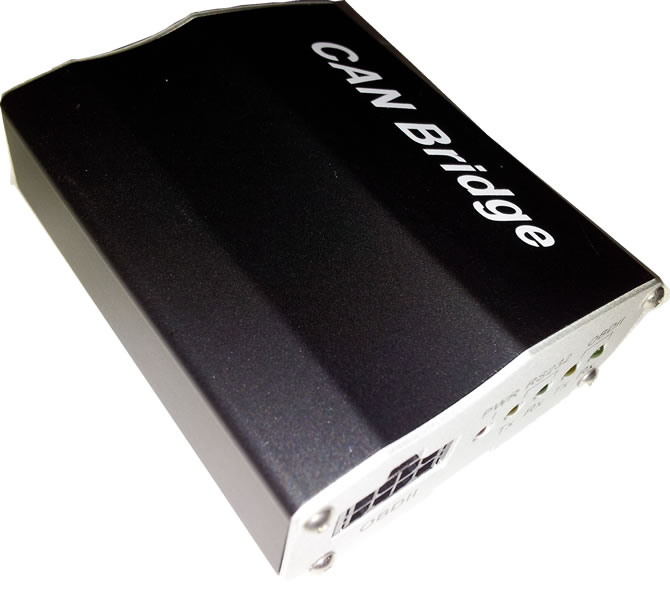

    • * Support for our CAN Bridge CANbus Solution (Remote Engine Management)
    • * Support for Squarell CANbus Solution (Remote Engine Management)
    • * Support for iButton Kit (DS1990A)
    • * Support for 1-Wire Temperature Sensor (for DS18B20 Sensor only)
    • * Support for External Fuel Sensors (Technoton, Vepamon, JoinTech)
    • * Support for Class I Bluetooth RS-232 Adaptor

* Optional Accessories

Stores up to 625 hours GPS event data, based on a 15 second update 24 hours a day 1,250 hours on a 30 second interval if there is no GPRS/GSM signal.

Technical Specification

    GSM Transceivers
      GSM Module
      • uBlox
      GSM Frequency
      • Quad-band: GSM 850 / 900 / 1800 / 1900 MHz
      Compliance
      • Compliant to GSM Phase 2/2+
      GPRS
      • GPRS multi-slot class 10/8
      • DL: max. 85.6 kbps
      • UL: max. 42.8 kbps
      • GPRS mobile station class B
      RF Power output
      • Class 4(2W) at EGSM900 and GSM850
      • Class 1(1W) at DCS1800 and PCS 1900
      Antenna
      • External GSM Antenna
      Connector
      • SMA Connector
    GPS Module
      Receiver
      • CSR SiRF Star III™ GPS Receiver
      Datum
      • WGS-84
      Sensitivity
      • -160dB
      Reacquisition
      • < 0.1s
      Update Rate
      • 1 Hz
      Channels
      • 50
      Accuracy
      • Average accuracy within 2.5 meters CEP
      Antenna
      • External GPS Active Antenna, 3.3V
      Connector
      • SMA Female Connector
    General
      I/O
      • 1 x ACC Detection
      • 3 x Output (Negative Triggers, Max. Sink Operating Current 300mA, @VIN)
      • 2 x Analogue Input (DC VIN = +30V ~ 0V DC, Function reserved 12-bit Resolution)
      • 4 x Digital Input (2 x Positive 3 ~ 40V, 2 x Negative 0 ~ 0.6V)
      Interface
      • 3 x RS-232 [(2 x 1-wire version) Support Garmin FMI, Bar Code Reader, RFID Reader, CANbus)]
    Dimensions (L x W x H): 72mm x 108mm x 31mm
    Weight : 165gm
    Power Source
      • 8 ~ 30V DC
    Power Consumption
      • 73mA @12V DC (Operating Power Mode)
      • 13mA@12V DC (Standby Power Mode)
      • 10mA@12V DC (Deep Sleep Power Mode)
    Backup Battery
      • 1150mAh Li-Ion backup battery
    Operating Temperature: -20°C ~ +70°C
    (NOTE: The specification is subject to change without prior notice.)

STU1 Brochure

Click here to download the brochure


real time vehicle GPS tracking ghana CareU STU1Lite

The STU1Lite Advanced Vehicle Locator offers standard
Real-Time inside GPS vehicle tracking with fuel monitor, GSM
Anti - Jamming detection, Roaming profiles & compatible with our Remote Engine Management add-on accessories & external Temperature sensor

real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana
  • Overview
  • Features
  • Technical Specifications
  • Brochure

Overview

The STU1Lite Advanced Vehicle Locator is a cut down variant of our popular STU1 tracking device. With similar functionality as its bigger brother the STU1, the STU1Lite integrates multiple applications of GPS (Global Position System), GSM (Global System for Mobile Communication) and GIS (Geographic Information Systems) with each other.

Designed with the latest GPS technology, the STU1Lite used in combination with our STCAN Bridge delivers positioning and real-time Engine Management data by GSM wireless transmission to our control centre, which is then presented to our users for analysis and the applications of vehicle transport management, anti-theft, security and tracking.

On it's own, the tracker transmits wireless signals such as location, connected peripherals and vehicle control data to our servers. The on-board GPS receiver provides users with location data such as speed, direction, mileage and altitude. When used with our STCAN Bridge add-on accessory, it transmits all the above and Engine Diagnostics data such as RPM, MAF, Engine Temperature, Throttle position, Diagnostics Fault Codes etc. It uses its on-board GSM/GPRS module to accomplish wireless transmission

The on-board micro-controller can probe location and command data at regular intervals (Roaming) derive actions from location, peripheral and control data and executing such actions. Example when GSM jamming is detected the STU1Lite can execute predefined actions such as immobilise the engine, turn on the hazard warning lights etc. or send alerts/audible warning when engine temperature exceeds a predefined threshold

Peripheral data indicates the status of various peripherals connected to and/or controlled by the device. The peripherals include, but not limited to, door locks/unlock, starter interrupt, ignition, battery level, fuel level, engine and panic button

The firmware in the device applies intelligent filtering to overcome coverage limitations for both GPS and GSM/GPRS networks however in the extreme cases where network coverage is poor or inadequate, it will keep recording and store up to 120,000 GPS data logs using its 8MB on-board memory

Motion sensors control the status of the device, whether in sleep, idle or fully-powered mode, and thereby controls the amount of current consumed by the device

Backup battery and tamper sensing GPS Antennas primarily indicate the loss of Main Power and the interruption of GPS antenna connectivity

The device supports both Command over-the-air (COTA) and Firmware over-the-air (FOTA) upgrade to deliver additional functionality without physically touching the device once installed.

Features

    • Roaming Profiles
    • Geofence Control
      • 50 geofence reports (Circular, Polygonal, Triangular & Rectangular Zones)
    • Intelligent power management
    • Power low/lost alarm
    • Mileage Report
    • Daily Report
    • 50 user-defined reports

    Security

    • Panic alarm
    • Motion Detection
    • Tow Detection
    • Anti GSM Jamming
      • Detects Signal Jamming, generates report & immobilise vehicle
    • Engine immobiliser
      • Equipped with a Bosch SPDT Relay the vehicle can be immobilised by an SMS command from a specified mobile/cell phone or from our command centre if need be

    Driving Behaviour

    • Drive Angle Detection
      • Detects & generates report on sharp turns (sharp left & sharp right cornering) possible accident detection
    • Impact & Collision Detection
    • Idle & Excess Idle Detection
    • Speed Acceleration Detection
    • Speed Deceleration Detection
    • High Speed Detection
      • Alerts & generates report on over speeding

    Communication

    • Command Over The Air (COTA)
      • Send commands to Tracking Device over the Air e.g. SMS or through our Web Application
    • Firmware Over The Air
      • Firmware can be upgraded Over the Air, that is we can upgrade the device to the latest firmware or software from our command centre even if the device is hundreds of miles away
    • The device can communicates through TCP/SMS network protocols

    Advanced Features

    • Fuel Level Monitor
    • * Support for Temperature Sensors (Refrigerated Trucks)
    • * Support for Garmin FMI (Fleet Management Interface)
    • * Support for RFID Reader & Barcode Reader
    • * Support for our CAN Bridge CANbus Solution (Remote Engine Management)
    • * Support for External Fuel Sensors (Technoton, Vepamon, JoinTech)
    • * Support for Class I Bluetooth RS-232 Adaptor

* Optional Accessories

Stores up to 500 hours GPS event data, based on a 15 second update 24 hours a day or 1,000 hours on a 30second interval if there is no GPRS/GSM signal.

Technical Specification

    GSM Transceivers
      GSM Module
      • uBlox
      GSM Frequency
      • Quad-band: GSM 850 / 900 / 1800 / 1900 MHz
      Compliance
      • Compliant to GSM Phase 2/2+
      GPRS
      • GPRS multi-slot class 10/8
      • DL: max. 85.6 kbps
      • UL: max. 42.8 kbps
      • GPRS mobile station class B
      RF Power output
      • Class 4(2W) at EGSM900 and GSM850
      • Class 1(1W) at DCS1800 and PCS 1900
      Antenna
      • Internal GSM antenna
    GPS Module
      Receiver
      • CSR SiRF Star III™ GPS Receiver
      Datum
      • WGS-84
      Sensitivity
      • -160dB
      Reacquisition
      • < 0.1s
      Update Rate
      • 1 Hz
      Channels
      • 50
      Accuracy
      • Average accuracy within 2.5 meters CEP
      Antenna
      • External GPS Active Antenna, 3.3V
      Connector
      • SMA Female Connector
    General
      I/O
      • 1 x ACC Detection
      • 2 x Output (Negative Triggers, Max. Sink Operating Current 300mA, @VIN)
      • 1 x Analogue Input (DC VIN = +30V ~ 0V DC, Function reserved 12-bit Resolution)
      • 3 x Digital Input (2 Positive 3 ~ 40V, 1 Negative 0 ~ 0.6V)
      Interface
      • RS-232 (Support Garmin FMI, Bar Code Reader, RFID Reader)
    Dimensions (L x W x H): 105 x 100 x 30mm
    Weight : 165gm
    Power Source
      • 8 - 35V DC
    Power Consumption
      • 72mA @12V DC (Operating Power Mode)
      • 8mA@12V DC (Standby Power Mode)
      • 6mA@12V DC (Deep Sleep Power Mode)
    Backup Battery
      • 1050mAh Li-Ion backup battery
    Operating Temperature: -20°C ~ +70°C
    (NOTE: The specification is subject to change without prior notice.)

STU1 Lite Brochure

Click here to download the brochure

Remote Engine Management

Our flagship Service, Remote Engine Management, is complemented by well-tested & industrial strength devices.
They act as an early warning system and are available in 2 forms that is

  • all in one hardware
  • advanced GPS Vehicle Tracking device with built in CAN interpreter
  • add-on accessory
  • a separate CAN interpreter as an accessory tool to our Advanced GPS Vehicle Tracking device

In each case, they provide similar data but of course dependant on vehicle type, make, model and year of production

* Please note that some of these devices may also be listed under the fleet management Devices

  • Cars & Light Trucks
  • Older Heavy Duty Trucks & Older Buses
  • Newer Heavy Duty Trucks & Newer Buses

Most cars and light trucks manufactured after the mid 1990's are equipped with the new OBDII (On-Board Diagnostics 2). This is in accordance of a set of standards laid out by the Society of Automotive Engineers (SAE) and International Standardization Organization (ISO). It described among others, the interchange of digital information between a Vehicle's ECU and a diagnostic scan tool.

OBDII, through the years have got more sophisticated and reliable that at present, it provides almost complete engine control and also monitors parts of the chassis, body and accessory devices, as well as the diagnostic control network of the car.

Our Engine Management products range comply with these standards and work with all OBDII compliant vehicles by connecting to the standard SAE J1962 diagnostic connector of the car to communicate via one of the standard OBDII communication protocols.

It should be noted that our devices can only read but cannot write to the ECU of the car, simply put, if there is a fault indicator or code such as the "check engine", our device will not be able to reset it. All it does is reading the data and presenting it to you for the appropriate measures to be taken to fix the problem.

  • STCAN Bridge

real time engine and diagnostic ghana OBDII CANbus Scan Kit

An add-on accessory to our STU1 Lite Advanced Vehicle Locator
It works like a Vehicle Diagnostic machine that's permanently connected to the on-board computer in Cars and Light Duty Trucks manufatured after 1999 to read & acquire engine diagnostics & performance data such as RPM, Engine Temp, Fault Codes etc

real time engine and diagnostic ghana real time engine and diagnostic ghana real time engine and diagnostic ghana
  • Overview
  • Features
  • Technical Specifications
  • Brochure

Overview

The STCAN Bridge CANbus Scan Kit is a multifunctional add-on accessory to the both the STU1 & STU1Lite that can be connected to a vehicles standard OBD (On-Board Diagnostic) connector to read diagnostics information and other engine data of the vehicle. This information and data read is then passed on to the STU1 or STU1Lite Advanced Vehicle Locator and then sent to our server, which is then presented to you

This CANbus Scan Kit is suitable for Newer Heavy Trucks and Newer Buses as well but in this section, we will focus our attention on this hardware running the OBDII firmware, which is optimized for Cars and Light Duty Trucks

Features

  • Supports Cars & Light Trucks equipped with OBDII manufactured from 1996 to presents
  • Advanced Power control with standby mode when ignition is OFF
  • Automatically searches for the right protocol for your vehicle
  • Advance vehicle repair techniques
  • Reads and transmits Diagnostic trouble codes
  • It provides real-time vehicle Diagnostics
  • It provides a warning for malfunction as indicated by the vehicles Malfunction Indicator Lamp (MIL)

Listed below are the data currently read from the vehicle's ECU or On-board computer

Fuel level Fuel Pressure Total Fuel Used Engine Coolant Temperature
Engine RPM Vehicle Speed OBD Odometer Engine Load
MAF air flow rate Throttle position Accelerator pedal position Run time since engine start
Intake Manifold Absolute Pressure Barometric pressure Intake Air Temperature Ambient air temperature
Control module voltage Malfunction Indicator Lamp (MIL) status Distance traveled with MIL ON Diagnostics Trouble Code (DTC)

In addition to the above data, the CAN Bridge, when connected to the U1, uses complex algorithms to produce the following alerts that can be sent as both SMS and GPRS alerts

  • Low vehicle Battery Voltage Alert
  • Ignition Alert [Detect Input/ACC Condition]
  • Engine ON/OFF Alert [Detect Engine ON/OFF Condition]
  • IDLE Alert based on the following parameters
    • OBD Speed
    • RPM
    • Accelerator Pedal position
  • Malfunction Indicator Lamp (MIL)
  • Diagnostics Trouble Code (DTC Active) Alert
  • Over-RPM Alert
  • Engine Temperature Alert
  • Low Fuel Alert
  • Acceleration/ Deceleration Alert
  • Over-Speed Alert

In addition to the above, customised alerts are available at no extra cost

Technical Specification

    Protocol support
      Support for all legislated OBD II protocols
      • ISO 15765-4 (CAN)
      • ISO 14230-4 (Keyword Protocol 2000)
      • ISO 9141-2 (Asian, European, Chrysler Vehicles)
      • SAE J1850 VPW (GM Vehicles)
      • SAE J1850 PWM (Ford Vehicles)
    Dimensions (L x W x H): 54mm x 67mm x 25mm
    Weight : 69g
    Power Source
      • 12 - 24V DC
    Power Consumption
      • 67mA@12VDC (Operation Mode)
      • 18.5mA@12VDC (Sleep Mode)
    Operating Temperature: -20°C ~ +70°C
    Serial Ports: RS-232 Ports (Baud Rate 9600kps)

STCAN Bridge OBDII Brochure

Click here to download the brochure

From its inception in 1986 defined by the SAE and TMC, the SAE J1708's main purpose was to address the transmission of electronic signals and information among truck and bus components (i.e. Electronic Control Units or ECUs) to be used for an onboard network.

It was developed for use in the heavy duty truck market and began emerging in heavy trucks in the mid 1990's. The SAE sought to establish this standard across all brands of heavy duty trucks in order to avoid the discrepant and proprietary protocols adopted by the manufacturers of cars and light duty vehicles.

The J1708 is now outdated and is currently phased out of production and has been replaced by J1939. Heavy Duty trucks manufactured after 2005 now use the SAE J1939 protocol, having said that they are still available and widely used in older heavy duty trucks and buses

It should be noted that our devices can only read but cannot write to the ECU of these Trucks & Busses, simply put, if there is a fault indicator or Diagnostic Trouble Code (DTC) our device will not be able to reset it. All it does is reading & processing the data and presenting it to you for the appropriate measures to be taken to fix the problem.

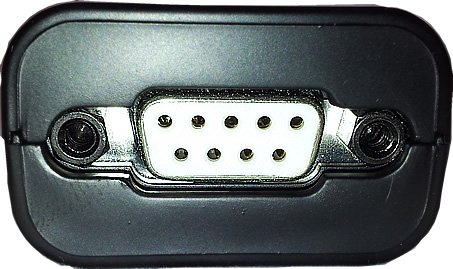

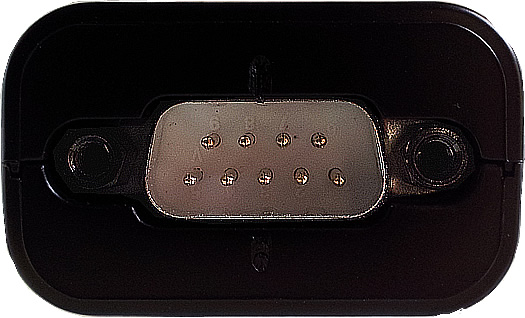

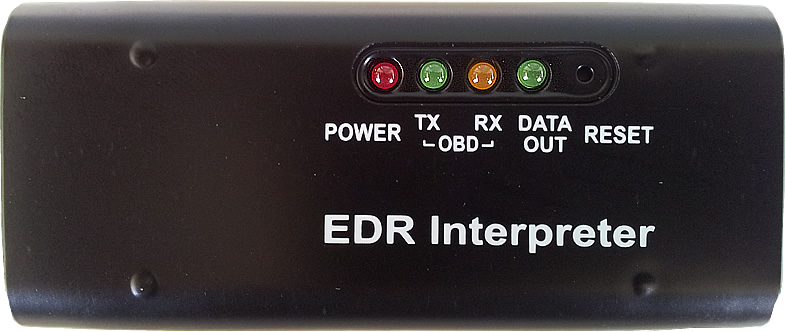

  • STJ1708 Interpreter

real time engine and diagnostic ghana J1708 Interpreter Scan Kit

An add-on accessory to our STU1 Advanced Vehicle Locator
It works like a Vehicle Diagnostic machine
that's permanently connected to Heavy Duty Engines to acquire engine diagnostics & performance data, It's suitable for Heavy Duty Trucks & Buses manufatured between 1996 - 2006

real time engine and diagnostic ghana real time engine and diagnostic ghana real time engine and diagnostic ghana
  • Overview
  • Features
  • Technical Specifications

Overview

The J1708 Interpreter Scan Kit is an add-on accessory to the U1 that can be connected to Older Heavy Trucks and Older Buses through the standard OBD (On-Board Diagnostic) connector or a CAN Hi/CAN Low cable to read diagnostics information and other important engine data of the vehicle. This information and data read is then passed on to the U1 Advanced Vehicle Locator and then sent to our server, which is then presented to you.

The J1708 Interpreter interfaces the vehicles OBD to get engine and diagnostics data from the Trucks/Bus ECU or on-board computer and it translates and processes the obtained data. This information is then passed on to the U1 AVL (Advanced Vehicle Locator) device for further processing.

The resultant data is then uploaded on to our server for further processing and analysis, which is then presented to you in your account in a matter of seconds.

It must be noted that the older Heavy Trucks and Buses use the J1708 protocol

Features

  • Supports Cars & Light Trucks equipped with OBDII manufactured from 1996 to presents
  • Supports Older Heavy Trucks and Older Busses equipped with the 6 pins Deutsch (round) OBD port and those without but are running the J1708 protocol
  • Advanced Power control with standby mode when ignition is OFF
  • Automatically searches for the right protocol for your vehicle
  • Advance vehicle repair techniques
  • Reads, process and transmits Diagnostic trouble codes
  • It provides real-time vehicle Diagnostics

Listed below are the data currently read from the vehicle's ECU or On-board computer

Vehicle Identification Number (VIN) Fuel Level Fuel Consumption (Average Fuel Economy) Engine Fuel Rate (EFR) Amount of fuel consumed by engine per litre of sec
Total Fuel Used (Natural Gas) Engine Coolant Temperature (ECT) Engine Oil Pressure Engine Turbocharger Boost Pressure (ETBP)
Engine Intake Manifold Temperature (EIMT) MAF (Mass Air Flow) Engine Load (Percent at current Speed) Engine RPM
Road Speed Road Speed Limit Status Accelerator Pedal Position (APP) Throttle Position
Cruise control Status Brake Application Pressure (BAP) Brake Primary Pressure (BPP) Brake Secondary Pressure
Anti-Lock Braking (ABS) Active Brake control Status Parking Brake Switch Status Cargo Weight
Total Vehicle Distance (TVD) Total Vehicle Hours (TVH) Total Engine Hours PTO Engagement Control Status
Diagnostic Trouble Codes (DTC)

In addition to the above data, the J1708 Interpreter, when connected to the U1, uses complex algorithms to produce the following alerts that can be sent as both SMS and GPRS alerts

  • Low vehicle Battery Voltage Alert
  • Ignition Alert [Detect Input/ACC Condition]
  • Engine ON/OFF Alert [Detect Engine ON/OFF Condition]
  • IDLE Alert based on the following parameters
    • OBD Speed
    • RPM
    • Accelerator Pedal position
  • Diagnostics Trouble Code (DTC Active) Alert
  • Over-RPM Alert
  • Engine Temperature Alert
  • Low Fuel Alert
  • Acceleration/ Deceleration Alert
  • Over-Speed Alert

In addition to the above, customised alerts are available at no extra cost

Technical Specification

    Protocol support
      Support for all legislated J1708 protocols:
      • SAE J1708
    Connection
      Input
      • CB1708 (J1708 to RS232 cable)
      Output
      • RS232
    Dimensions (L x W x H): 85mm x 37mm x 28mm (±0.5mm)
    Working Voltage
      • 24V DC (±4V)
    Working Current
      • 200mA (±5mA)
    Operating Temperature: -20°C ~ +85°C
    Serial Ports: RS-232 Ports (Baud Rate 9600kps, 8, N, 1)

From its inception in 1986 defined by the SAE and TMC, the SAE J1708's main purpose was to address the transmission of electronic signals and information among truck and bus components (i.e. Electronic Control Units or ECUs) to be used for an onboard network.

It was developed for use in the heavy duty truck market and began emerging in heavy duty trucks in the mid 1990's. The SAE sought to establish this standard across all brands of heavy duty trucks in order to avoid the discrepant and proprietary protocols adopted by the manufacturers of cars and light duty vehicles.

The J1708 is now outdated and is currently phased out of production and has been replaced by J1939. Heavy Duty trucks manufactured after 2005 now use the SAE J1939 protocol, having said that they are still available and widely used in older heavy duty trucks and buses

It should be noted that our devices can only read but cannot write to the ECU of these Trucks & Busses, simply put, if there is a fault indicator or Diagnostic Trouble Code (DTC) our device will not be able to reset it. All it does is reading & processing the data and presenting it to you for the appropriate measures to be taken to fix the problem.

  • STCAN Bridge
  • STA1CAN

real time engine and diagnostic ghana SAE J1939 CANbus Scan Kit

An add-on accessory to our STU1 Advanced Vehicle Locator
It works like a Vehicle Diagnostic machine that's permanently connected to Heavy Duty Engines to acquire engine diagnostics & performance data, It's suitable for Heavy Duty Trucks & Buses manufatured after 2006 or Euro III - VI Heavy Duty Engines

real time engine and diagnostic ghana real time engine and diagnostic ghana real time engine and diagnostic ghana
  • Overview
  • Features
  • Technical Specifications
  • Brochure

Overview

The STCAN Bridge CANbus Scan Kit is a multifunctional add-on accessory to the STU1 & STU1Lite that can be connected to Heavy Duty Trucks and Buses through the standard OBD (On-Board Diagnostic) connector to read diagnostics information and other important engine data of the vehicle. This information and data read is processed and then passed on to the STU1 or STU1Lite Advanced Vehicle Locator for further processing and then sent to our server for analysis, which is then presented to you

This CANbus Scan Kit is ideal for Newer Heavy Duty Trucks and Newer Buses. Although it looks physically similar to the one used in cars and Light Trucks, the wiring are different and the firmware that is optimized for Newer Trucks and Buses are also different to those geared towards Cars and Light Tucks.
We will focus our attention on this hardware running the optimized firmware version for newer Trucks and Buses.

Features

  • Supports Heavy Duty Trucks and Busses manufactured from 2005 to present
  • Supports Newer Heavy Duty Trucks and Newer Busses equipped with the 9 pins Deutsch connector OBD, FMS and J1939 protocols
  • Advanced Power control with standby mode when ignition is OFF
  • Automatically searches for the right protocol for your vehicle
  • Advance vehicle repair techniques
  • Reads, process and transmits Diagnostic trouble codes
  • It provides real-time vehicle Diagnostics

Listed below are the data currently read from the vehicle's ECU or On-board computer

Fuel Level Engine Fuel Rate (EFR) Engine Instantaneous Fuel Economy (EIFE). Engine Coolant Temperature (ECT)
Engine Oil Temperature (EOT) Engine Intake Manifold Temperature (EIMT) Engine Turbocharger Boost Pressure (ETBP) Axle Weight
High Resolution Total Vehicle Distance Engine speed Cruise control Accelerator Pedal Position
Brake Pedal Position Parking Brake Switch Active Diagnostic Trouble Codes FMS standard Interface Identity
Tachograph Tachograph vehicle speed

In addition to the above data, the CAN Bridge, when connected to the U1, uses complex algorithms to produce the following alerts that can be sent as both SMS and GPRS alerts

  • Low vehicle Battery Voltage Alert
  • Ignition Alert [Detect Input/ACC Condition]
  • Engine ON/OFF Alert [Detect Engine ON/OFF Condition]
  • IDLE Alert based on the following parameters
    • OBD Speed
    • RPM
    • Accelerator Pedal position
  • Diagnostics Trouble Code (DTC Active) Alert
  • Over-RPM Alert
  • Engine Temperature Alert
  • Low Fuel Alert
  • Acceleration/ Deceleration Alert
  • Over-Speed Alert

In addition to the above, customised alerts are available at no extra cost

Technical Specification

    Protocol support
      Support for all legislated J1939 protocols
      • SAE J1939
      • FMS
      • OBD II
    Dimensions (L x W x H): 54mm x 67mm x 25mm
    Weight : 69g
    Power Source
      • 12 - 24V DC
    Power Consumption
      • 67mA@12VDC (Operation Mode)
      • 18.5mA@12VDC (Sleep Mode)
    Operating Temperature: -20°C ~ +70°C
    Serial Ports: RS-232 Ports (Baud Rate 9600kps)

STCAN Bridge J1939 Brochure

Click here to download the brochure


real time vehicle GPS tracking ghana IntelliTrac STA1CAN

This beauty is an all-in-one Advanced Vehicle Locator
with built-in Remote Engine Management suitable for Heavy Duty Trucks & Buses manufatured after 2006 or Euro III - VI Heavy Duty Engines. It's equipped with fuel monitor & Roaming profiles

real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana real time vehicle GPS tracking ghana
  • Overview
  • Features
  • Technical Specifications
  • Brochure

Overview

Probably the most beautiful Advanced Vehicle Locator (AVL) ever produced, the STA1CAN matches its looks with functionality, build quality and reliability.

An all in one device, it has a built-in CAN chipset making it capable of reading and processing J1939 data. Meaning that the STA1CAN is designed to compliment the Fleet Management and Remote Engine Management service.

The onboard GPS receiver provides users with location data including speed, direction, mileage and altitude whilst the onboard J1939 chipset provides vehicle control data. The accumulated data is stored in memory and then forwarded on to our control centre using its onboard GSM/GPRS module wireless transmission.

A microcontroller can probe location and command data at regular intervals, derive actions from location, peripheral and control data, and execute such actions

Peripheral data indicates the status of various peripherals its connected to and controlled by the unit. Peripherals include, but not limited to, door locks/un-locks, starter interrupt, ignition, battery, engine and panic button.

Firmware on the device applies intelligent filtering to overcome coverage limitations for both GPS and GSM/GPRS networks

Motion sensor can control the status of the unit, no matter in sleep, idle or full power mode and thereby control the amount of current consumed by the unit.

Backup battery and tamper sensing GPS Antennas primarily indicates loss of Main Power and interruption of GPS antenna connectivity The device supports Over-the-air firmware upgrade to deliver additional functionality without physically touching the device once installed.

Roaming profiles and 50 reports available to be customized such as

  • Vehicle & device back-up battery status
  • Engine Over Revving
  • Engine Coolant Temperature alerts (Over heating)
  • Voice monitoring & two way voice communication
  • Independent Fuel level monitoring
  • Ignition ON/OFF & Engine ON/OFF alerts
  • High Speed alerts
  • Tow alerts
  • Power status
  • GPS signal monitor
  • Motion detection
  • Impact or collision detection
  • Vehicle Idle alert
  • Speed acceleration & deceleration
  • Driver Fatigue
  • etc..

your imagination will be the limitation for choice

In effect the STA1CAN is an Advanced GPS tracking device and a personalized fully capable diagnostics machine for Newer Heavy Duty Trucks and Buses all in one that will be permanently installed in the vehicle.

Features

  • Improved Safety & Ensured Security
  • Best efficiency for Fleet Management & Dispatch solution
  • Asset and resource management
  • Economic operation and productivity improvement
  • Great journey recordkeeping for future analysis or accident reports
  • Accurate location of the vehicle, estimated time of its arrival & current speed

The incorporated Remote Engine Management features provides these additional

  • Reduce Vehicle maintenance cost
  • Schedule maintenance
  • Vehicle performance information
  • Engine coolant temperature
  • Engine Oil pressure
  • OBDII/EOBD Data collection
  • Vehicle monitor data statistics
  • Idle time (Engine ON but speed is zero)
  • Odometer reading
  • Fuel Economy
  • Oxygen sensor status
  • Catalyst status
  • Vehicle out of tune
  • Speed, Calculation load, Throttle position
  • Remote Diagnostics or Trouble code reporting

Remote Engine Management Features

The A1CAN has a built in J1939 CANbus chipset making it capable of reading and interpreting engine data from any vehicle that is equipped with the J1939 protocol. This means it will read engine data from all Heavy Duty Trucks and Busses manufactured from 2006 to present.

Listed below are the data currently read from the vehicle's ECU or On-board computer

Fuel Level Engine Fuel Rate (EFR) Fuel Temperature in Engine Engine Coolant Temperature (ECT)
Engine Oil Temperature (EOT) Engine Turbocharger Boost Pressure (ETBP) Axle Weight Engine speed (RPM)
Mass Air Flow rate (MAF) Oxygen Sensor Output voltage Vehicle Wheel Speed (VSS) Accelerator Pedal Position
Time Since Engine Start High Resolution Total Vehicle Distance Active Diagnostic Trouble Codes Tachograph vehicle speed
Barometric Pressure Ambient Air Temperature

In addition to the above data, the A1CAN uses complex algorithms to produce the following alerts & reports that can be sent as both SMS and GPRS alerts

  • Low vehicle Battery Voltage Alert
  • Ignition Alert [Detect Input/ACC Condition]
  • Engine ON/OFF Alert [Detect Engine ON/OFF Condition]
  • IDLE Alert based on the following parameters
    • OBD Speed
    • RPM
    • Accelerator Pedal position
  • Diagnostics Trouble Code (DTC Active) Alert
  • Over-RPM Alert
  • Engine Temperature Alert
  • Low Fuel Alert
  • Acceleration/ Deceleration Alert
  • Over-Speed Alert

In addition to the above, customised alerts are available at no extra cost

Technical Specification

    GSM Transceivers
      GSM Module
      • Simcom
      GSM Frequency
      • Quad-band: GSM 850 / 900 / 1800 / 1900 MHz
      Transmit Power
      • 1W/1800MHz, 1900Mhz
      • 2W/850MHz, 900MHz
      SIM Interface
      • Support SIM card 1.8V, 3V
      GPRS
      • GPRS Mode MultiSlot Class 10
      • Coding Scheme CS1, CS2, CS3 & CS4
      • GPRS Mobile Station Class B
      Antenna
      • External GSM Antenna
      Connector
      • SMA Connector
    GPS Module
      Receiver
      • CSR SiRF Star III™ GPS Receiver
      Datum
      • WGS-84
      Sensitivity
      • -159dB
      Receiver
      • MultiSlot Class 10, Mobile Station Class B
      Protocol
      • NMEA 0183 Ver 3.0
      Antenna
      • External GPS Active Antenna, 3.3V
      Connector
      • SMA Female Connector
    Protocol support
      Support for all legislated OBD II protocols
      • SAE J1939 [(Newer Heavy Duty Trucks & Busses) manufactured from 2006 - present]
    General
      On Board components
      • 32-bit MicroController
      • 8MB Flash
      • 3-Axis G-Force Acceleration Motion Sensor
      • J1939 CANbus interpreter
      I/O
      • 1 x ACC Detection
      • 3 x Outputs (Negative Triggers Max. Sink Current 300mA)
      • 1 x Analogue Input (VI DC 0V ~ 30V, 12-Bit Resolution)
      • 5 x Digital Inputs (3 Positive Triggers VIHmin 7.0V, VILmax 6.0V & 2 Negative Triggers VIHmax 30V, VILmax 0.7)
      Interface
      • 3 Connectors, 4 pin, 8 pin & 10 pin
      • 1 x RS-232 Serial data port (Default 57600bps, Configurable)
    Dimensions (L x W x H): 110mm x 95mm x 30mm
    Weight : 110gm
    Power Source
      • 8 V - 30 V
    Power Consumption
      • 70mA@12V (Full Power Mode)
      • 15mA@12V (Low Power Mode)
      • 6mA@12V (Very Low Power Mode)
    Operating Temperature: -30°C ~ +80°C

STA1CAN Brochure

Click here to download the brochure

Pay As You Track Devices Content comming soon
